Refractory Selection and application for Glass Furnaces

1. Refractories are the backbone of Glass Industry and we enjoy the confidence of Glass Industries due to:

        a.Tailor made products for Glass Industry

     b.Consistent Quality products for all areas of application

        c.Direct Bonded products with microstructure free from glass phase and other impurities

        d.Committed delivery schedule

        e.Well documented quality control with traceability

        f. Pre –assemble product with zero defect

        g.Pre – dispatch inspection

        h.Provide assistance in selection of refractories

        i.Design Assistance

        J.Cost Effectiveness

2.Glass tank furnace should have a long life and selection of refractories is very crucial to achieve the desired life.

The selected refractories should have the following properties:

1.) Chemical Stability
2.) Least effect on glass quality (No Inclusions, Gas Formations, Seed/Cord Formations)
3.) High Corrosion Resistance
4.) High Creep Resistance (Low Glassy Phase)
5.) Volume Stability at high temperature
6.) Low Thermal Expansion
7.) High Thermal Shock Resistance

8.) Inertness to environment to which it is exposed

The selection of refractory is dependent upon

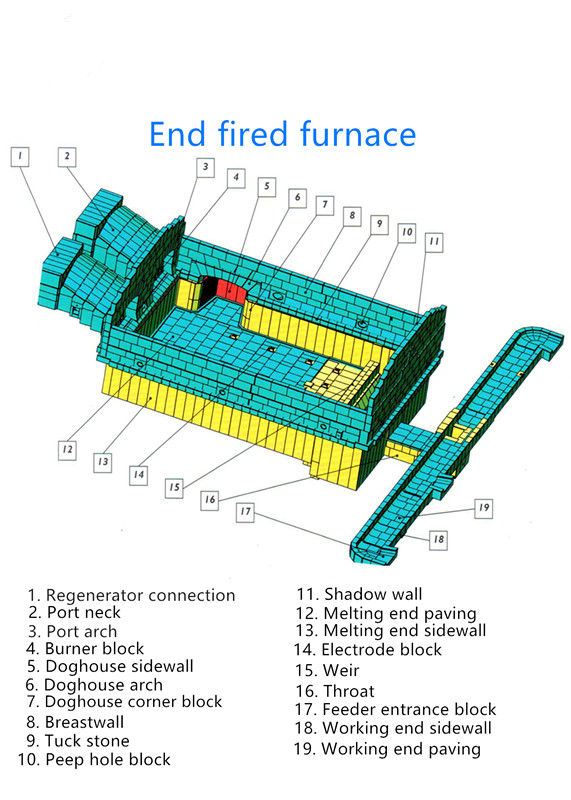

1.) Area of Application (Melter, Throat, Refiner and Regenerator etc)
2.) Corrosion by Molten Glass (Glass Contact Refractories)
3.) Corrosion by alkali in the non-glass contact areas like crown, upper wall etc.
4.) Condensed alkali and dust deposition (Regenerator)

5.) Temperature profile and heat loss.
